Features
- Supports performance up to 10.7 Gbps bit rate
- -20℃ to +85℃ operating temperature, range up to 20km
- LR1 SONET/ SDH OC-192/STM-64
- 10Gigabit Ethernet
- 10G Fiber Channel
- IEEE 10G Base-LRM receiver system
- Compliant with RoHS standard
Applications
- Built-in a high speed, low noise, linear TIA Single 3.3V power supply for TIA
- Differential output
- Operates at 1550nm
- Wide operating temperature -20℃ to +85℃

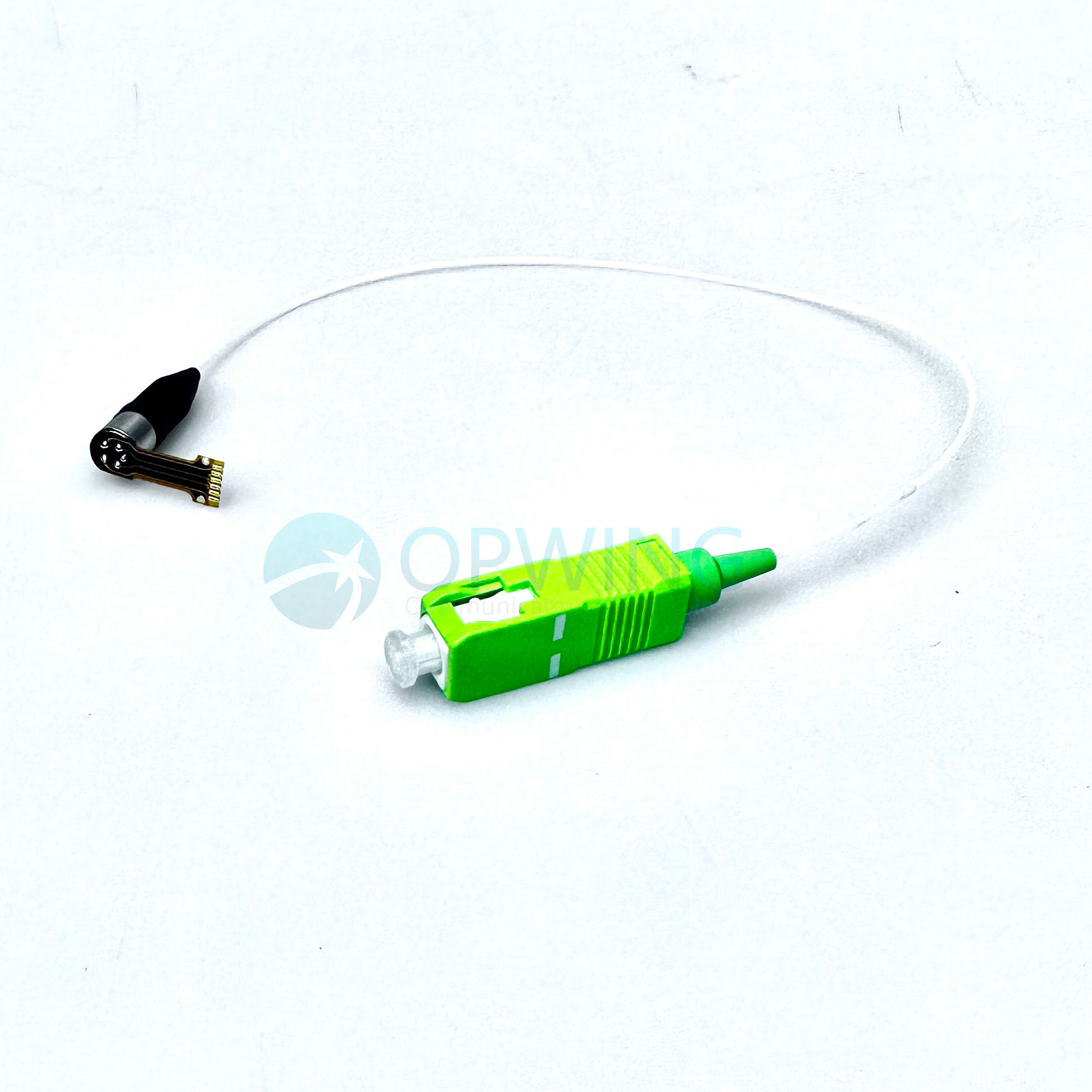

- Package in SC module with SC receptacle interface
- Module assembly on Board by pin insertion wave welding
- High reliability
Absolute Maximum Ratings (Tc=25℃, unless otherwise noted)
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
Comments |
|
Case Operating Temperature range |
Tc |
-40 |
85 |
℃ |
- |
|
Storage Temperature range |
Ts |
-20 |
85 |
℃ |
- |
|
Relative Humidity |
RH |
--- |
85 |
% |
- |
|
TIA Supply Voltage |
Vcc |
-0.4 |
4 |
V |
- |
|
Lead Solder Temperature |
- |
--- |
260 |
℃ |
10Seconds Max- |
E-O and O-E characteristics (Tc=25±2℃, unless otherwise noted)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Wavelength |
λ |
1250 |
1550 |
1620 |
nm |
|
|
Supply Voltage |
Vcc |
2.97 |
3.3 |
3.47 |
V |
No Loads |
|
Supply Current |
Icc |
— |
28 |
34 |
mA |
No Loads |
|
Responsivity |
R |
0.8 |
— |
— |
A/W |
Vcc=3.3V，λ=1550nm |
|
Dark Current |
Id |
— |
— |
5 |
nA |
|
|
-3dB Bandwidth |
BW |
8 |
10 |
— |
GHz |
Over input current range: 150uApp – 1mApp, 100ohm differential output load |
|
Optical sensitivity |
Sen |
— |
— |
-16.5 |
dBm |
Up to10.7Gb/s, 1550nm light source, PRBS=2^31-1, ER=5dB， BER=10-12 |
|
Overload Power |
Ps |
0.5 |
— |
— |
dBm |
|
|
Return loss |
RL |
40 |
— |
— |
dB |
λ=1550nm |
|
ESD |
300 |
— |
— |
V |
