Features
- InGaAs PIN photodiode ,Low dark current
- Compact package，Low insertion loss
Application
- Communications systems
- Optical fiber sensors,Optical test instrumentation
Absolute Maximum ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Forward current |
If |
— |
10 |
mA |
|
Reverse voltage |
Vr |
— |
30 |
V |
|
Operating temperature |
Top |
－25 |
+70 |
℃ |
|
Storage temperature |
Tstg |
－40 |
+100 |
℃ |
|
Solder Temperature |
TS |
— |
260 |
℃ |
|
Soldering time |
— |
— |
10 |
s |
Optical and Electrical Characteristics(Tc=25℃)
|
Parameter |
Unit |
Value |
|
Operating wavelength |
nm |
1260-1620 |
|
Tap ratio |
% |
2 |
|
Responsivity（1270nm） |
A/W |
Min： 0.016 Max： 0.022 |
|
Reflection Insertion loss |
dB |
Max：0.5 |
|
PD Dark Current（Vr=5V） |
nA |
≤1 |
|
Capacitance |
pF |
Typ：4.0 Max：6.0 |
|
Return loss |
dB |
≥45 |
|
PDL |
dB |
≤0.1 |
|
Insertion loss thermal stability |
dB/℃ |
≤0.005 |
|
Input Power Range |
mW |
Max：200 |
|
Dimensions |
mm |
Φ4×19 |
|
Fibre type |
SMF G.657 A1 (Φ0.25mm bare fiber) |
|
|
ESD |
V |
500 |

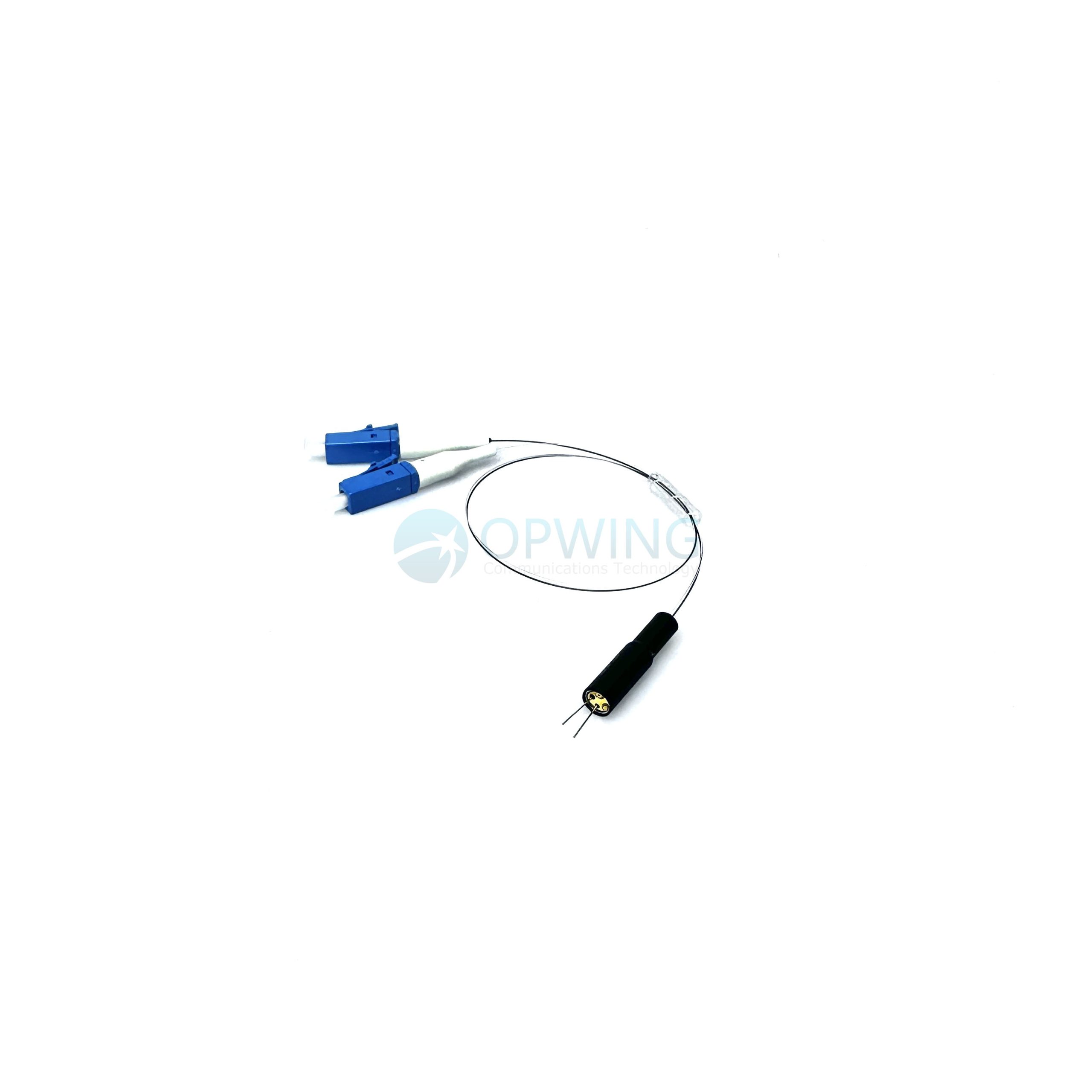

Package Dimensions and Pin Description
Unit：mm Connector：LC/UPC
Fiber type：SM G.657、9/125um、Φ250um Bare Fiber
① TLU3-W2-0.25-B01-22/22（1010816019）
② TLU3-W2-0.25-B01-23.5/23.5（1010816020）
