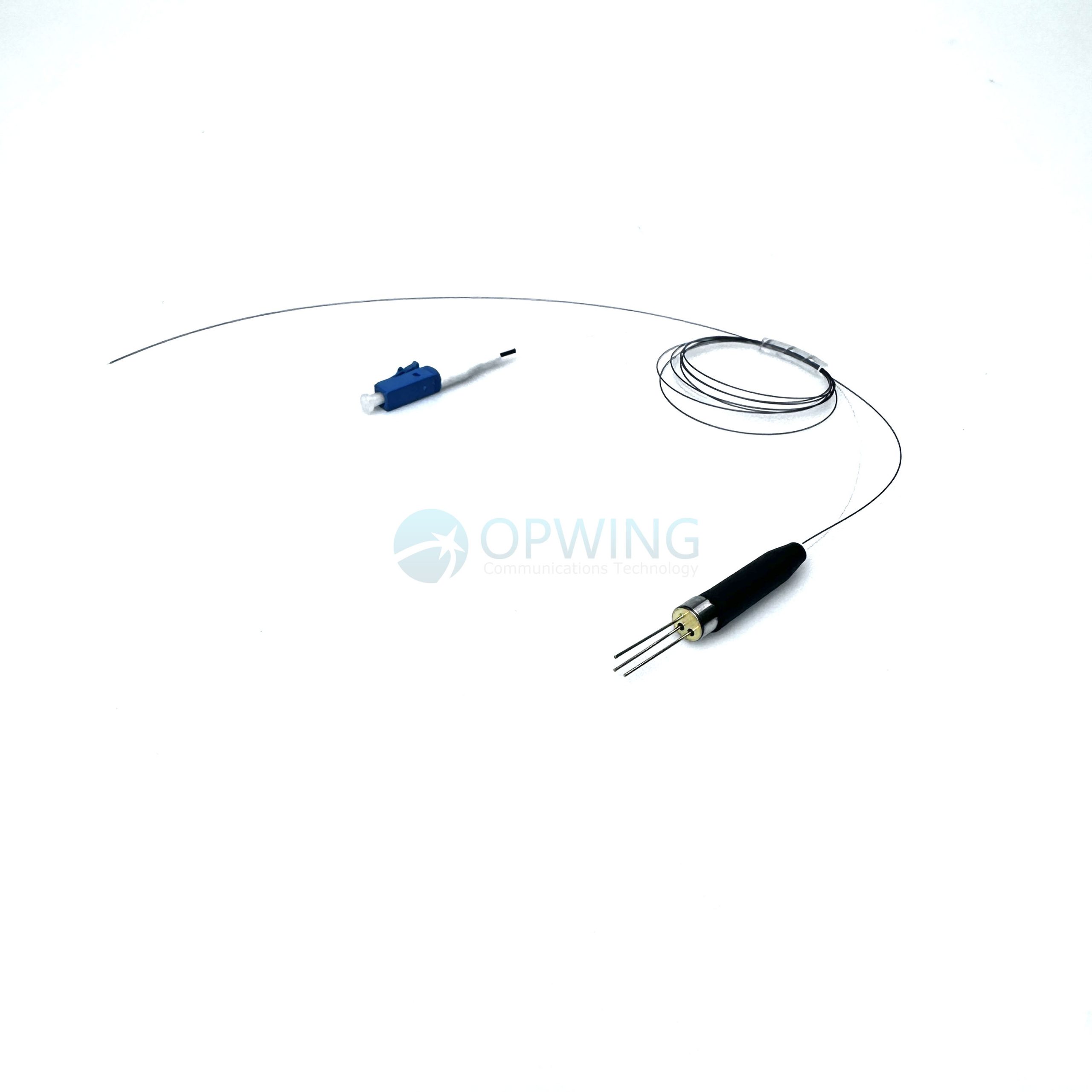

Features
- InGaAs PIN photodiode ,Low dark current
- Compact package，Low insertion loss
Application
- FTTH ,Communications systems
- Optical fiber sensors,Optical test instrumentation
Absolute Maximum ratings
|
Parameter |
Symbol |
最Min |
Max |
Unit |
|
Forward current |
If |
— |
10 |
mA |
|
Reverse voltage |
Vr |
— |
20 |
V |
|
Operating temperature |
Top |
－5 |
+70 |
℃ |
|
Storage temperature |
Tstg |
－40 |
+85 |
℃ |
|
Solder Temperature |
TS |
— |
260 |
℃ |
|
Soldering time |
— |
— |
10 |
s |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
|
Case Operating Temperature Range |
Tc |
－5 |
+25 |
+70 |
℃ |
|
Operating voltage |
Vcc |
-24 |
-5 |
— |
V |
Optical and Electrical Characteristics(Tc=25℃)
|
Parameter |
Unit |
Value |
|
Operating wavelength |
nm |
1260-1620 |
|
分光比Tap ratio |
% |
2 |
|
响应度 Responsivity |
A/W |
Min： 0.016 Max： 0.022 |
|
Reflection Insertion loss |
dB |
Max：0.5 |
|
PD Dark Current（Vr=5V） |
nA |
≤1 |
|
Return loss |
dB |
≥45 |
|
PDL |
dB |
≤0.1 |
|
Insertion loss thermal stability |
dB/℃ |
≤0.005 |
|
Input Power Range |
mW |
Max：200 |
|
Dimensions |
mm |
φ5.6*27 |
|
Fibre type |
SMF-28e (Φ0.25mm bare fiber) |
|
|
ESD |
V |
500 |
Package Dimensions and Pin Description
Unit：mm Connector：LC/UPC
Fiber type：SM 、9/125um 、250um
