Features
- Built-in optical isolator
- Low capacitance and low dark current
- High stability of DFB lasers die
- Low threshold current, low operating current
- Integrated high isolation, low insertion loss
Applications
- CATV Reverse Transmission
- Other Analog or Digital Optical Transmission
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Rated Power | Po | 6 | 8 | 10 | mW | Ith+40mA |
| Slope Efficiency | SE | - | 0.15 | 0.2 | mW/mA | - |
| Threshold Current | Ith | - | 10 | 15 | mA | - |
| Operating Current | Iop | - | 50 | 70 | mA | - |
| Forward Voltage Drop | Vop | - | 1.0 | 1.2 | V | CW, Ith+40mA |
| Cent Wavelength | λc | 1540 | 1550 | 1560 | nm | - |
| Spectrum Width(-20dB) | Δλ | - | 0.5 | 1 | nm | Ith+40mA |
| Side-mode Suppression Ratio | SMSR | 35 | - | - | dB | - |
| Bandwidth | Bw | - | 2.5 | - | GHz | - |
| Monitor Current | Im | 100 | - | 1200 | uA | CW, Ith+40mA |
| Dark Current of Monitor | Id | - | - | 100 | nA | 5V |
| Optical Isolation(Single stage) | ISO | 35 | 40 | - | dB | - |
| Optical Isolation(Double stage) | ISO | 45 | 50 | - | dB | - |
| Return Loss | RL | - | - | -45 | dB | - |
| Analog Characteristic index | ||||||
| Relative Intensity Noise | RIN | - | -155 | -150 | dB/Hz | - |
| RF Bandpass Flatness | BF | - | ±1.5 | - | dB | - |
| Third-order Distortion | IMD3 | - | -55 | - | dBc | - |
| Carrier Noise Ratio | CNR | 51 | - | - | dB | Note 1 |
| Composite Second Order | CSO | - | - | -57 | dBc | |
| Composite Triple Beat | CTB | - | - | -65 | dBc | |
Note 1:
① If=Iop, Optical Modulation, Index=3.2%/channel (minimum),60 PAL-D unmodulated carries (47 to 550MHz), 10km singlemode fiber, -1dBm received power, Receiver responsivity=0.85A/W.
② If=Iop, Optical Modulation Index=3.2%/channel (minimum), CNR, CSO, CTB tested value at worst case over all test frequencies. NTSC 120ch., 10km singlemode fiber, -1dBm received power, Receiverresponsivity=0.85A/W
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Test Condition |
| Storage Temperature | Tstg | -40 | 100 | ℃ | - |
| Operating Temperature | Top | -40 | 85 | ℃ | - |
| Forward Current(LD) | If(LD) | - | 150 | mA | - |
| Reverse Voltage(LD) | Vr(PD) | - | 2 | V | CW |
| Forward Current(PD) | If(LD) | - | 2 | mA | - |
| Reverse Voltage(PD) | Vr(PD) | - | 15 | V | CW |
| Soldering Temp | - | - | 260 | ℃ | - |
| Soldering Time | - | - | 10 | S | S |

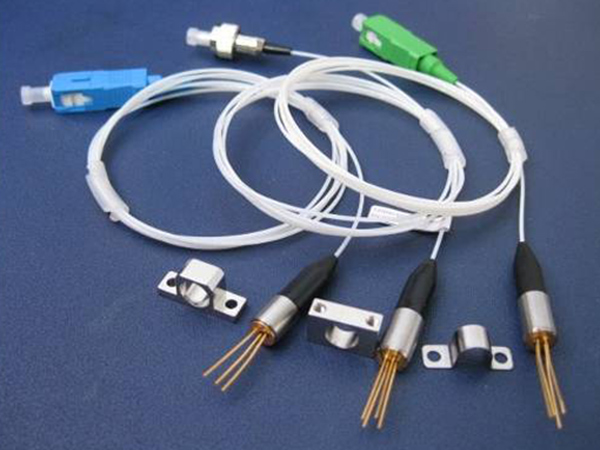

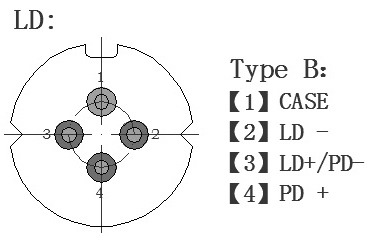

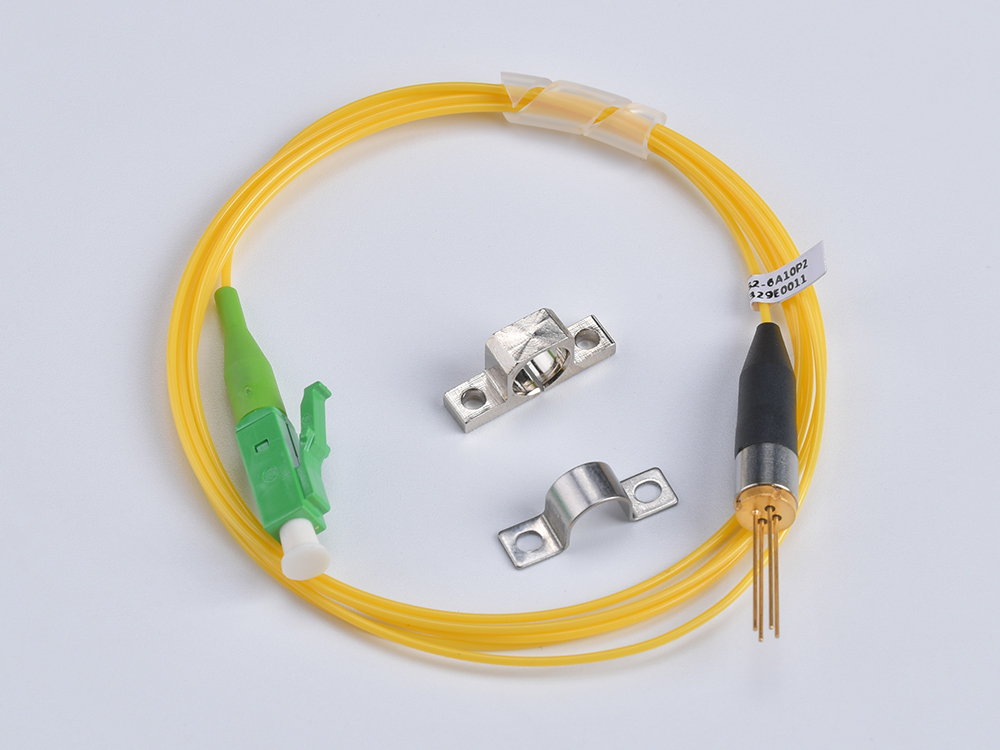

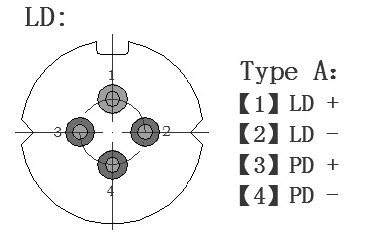

PIN Definition
