Features
- High-reliability DFB laser diode, Integrated Optical Isolator(single stage FSI)
- Low threshold Current,Low dark current, High slope efficiency,High linearity
- Compliant with RoHS standard
Application
- Apply to various digital and analog fiber-optic transmission systems,CATV
Optical and Electrical Characteristics(Tc=25℃)

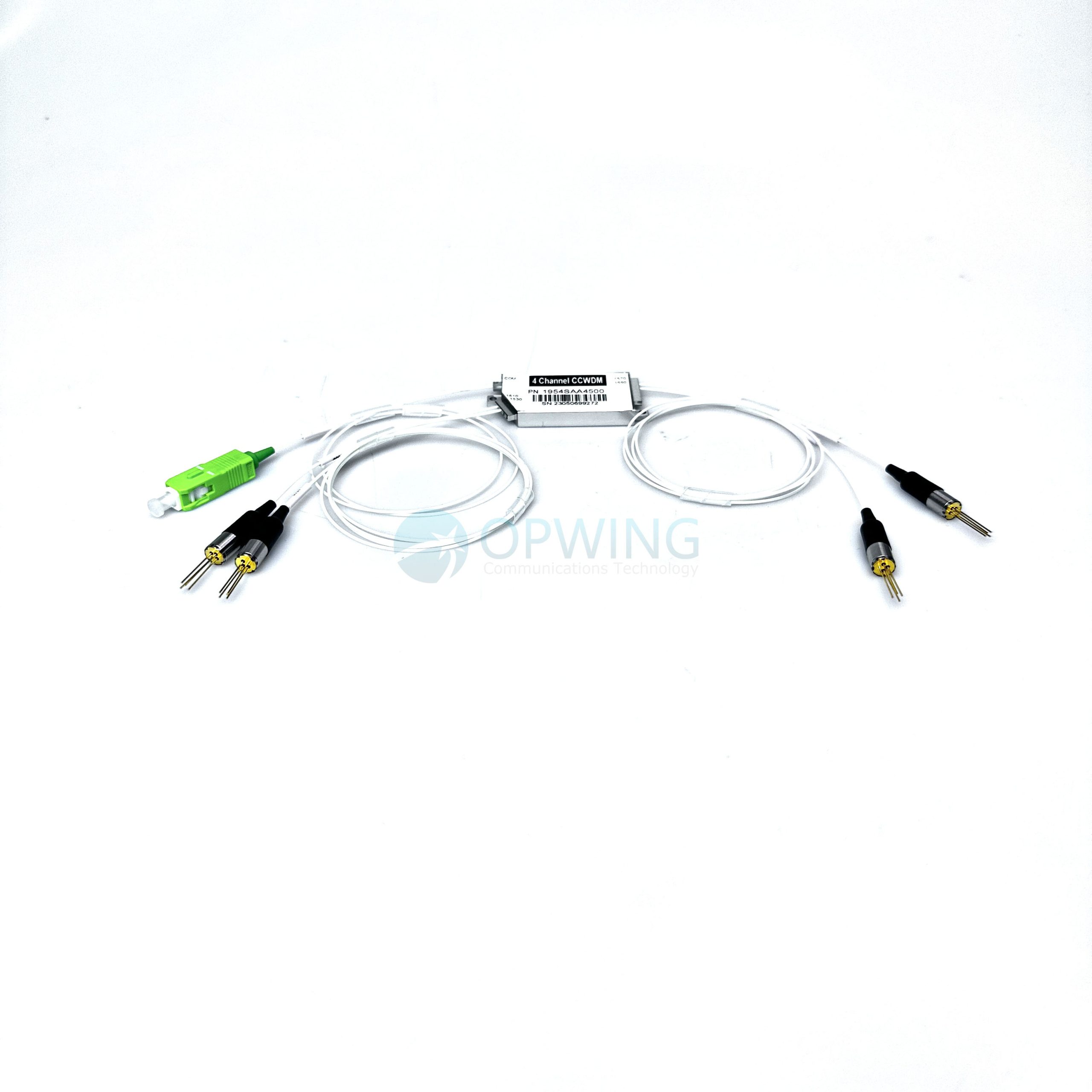

1×4 Channels CCWDM 1510/1530/1550/1570nm Transmit Module YYCM-3-4-SA
|
Num |
Parameter |
Unit |
Min |
Typ |
Max |
|
|---|---|---|---|---|---|---|
|
YYCM-3-4-SA |
||||||
|
1 |
Threshold Current |
mA |
— |
6 20 |
10 35 |
CW, T=25 °C CW, T=85 °C |
|
2 |
Operating Current |
mA |
— |
Ith+20mA |
— |
CW, T=25 °C |
|
3 |
Operating Voltage |
V |
— |
1.1 |
1.6 |
CW, Ith+20mA |
|
4 |
Monitor Current(I=Ith+20mA) |
uA |
100 |
— |
600 |
CW, Ith+20mA @25 °C |
|
5 |
Monitor Dark Current |
nA |
— |
— |
10 |
Vr=10V |
|
6 |
Monitor Capacitance |
pF |
— |
— |
10 |
V=10V，F=1MHz |
|
7 |
-3dB Bandwidth |
GHz |
2.5 |
— |
— |
Po=3mW |
|
8 |
3rd Order Distortion |
dB |
— |
-65 |
-58 |
|
|
9 |
Relative Intensity Noise |
dB/Hz |
— |
-155 |
-150 |
@F=2.2GHz |
|
10 |
Optical Output Power |
mW |
3.0 |
— |
— |
CW, Ith+20mA |
|
11 |
Slope Efficiency |
mW/mA |
0.15 |
— |
— |
CW, Ith+20mA |
|
12 |
Center Peak Wavelength(T=25℃) |
nm |
1507 1527 1547 1567 |
1510 1530 1550 1570 |
1513 1533 1553 1573 |
CW, Ith+20mA |
|
13 |
Spectral Width |
nm |
— |
0.1 |
1.0 |
CW, Ith+20mA |
|
14 |
SMSR |
dB |
30 |
40 |
— |
Ith+20mA，25°C |
|
15 |
Optical Isolation |
dB |
30 |
— |
— |
|
|
16 |
Wavelength temperature coefficient |
nm/°C |
— |
0.10 |
0.12 |
|
|
17 |
Tracking Error |
dB |
-1 |
— |
1 |
25°C/85°C |
|
18 |
Rise and fall time |
ps |
— |
100 |
150 |
Ith+20mA，10%~90% |
1×4 Channels CCWDM 1510/1530/1550/1570nm Receiver Moudle YYCD-3-4-SA
|
Num |
Parameter |
Unit |
Min |
Typ |
Max |
||
|---|---|---|---|---|---|---|---|
|
YYCD-3-4-SA |
|||||||
|
1 |
Freguency Bandwidth (-3dB) |
GHz |
2.5 |
— |
— |
||
|
2 |
Capacitance (Vr=5V) |
pF |
— |
0.6 |
1 |
||
|
3 |
Dark Current (Vr=5V) |
nA |
— |
0.2 |
1 |
||
|
4 |
Responsivity (Vr=5V) |
mA/mW |
0.85 |
— |
— |
1510/1530/1550/1570nm |
|
|
5 |
Optical Return Loss |
dB |
40 |
50 |
— |
||
|
6 |
2nd Order Inter-Modulation |
dBc |
— |
≤-75 |
— |
||
|
7 |
3rd Order Inter-Modulation |
dBc |
— |
≤-80 |
— |
||
|
8 |
Detection Wavelength Range |
nm |
— |
1510 1530 1550 1570 |
— |
||
Package Dimensions and Pin Description
Connector：SC/APC
Fiber Type：SM 、9/125um 、900um

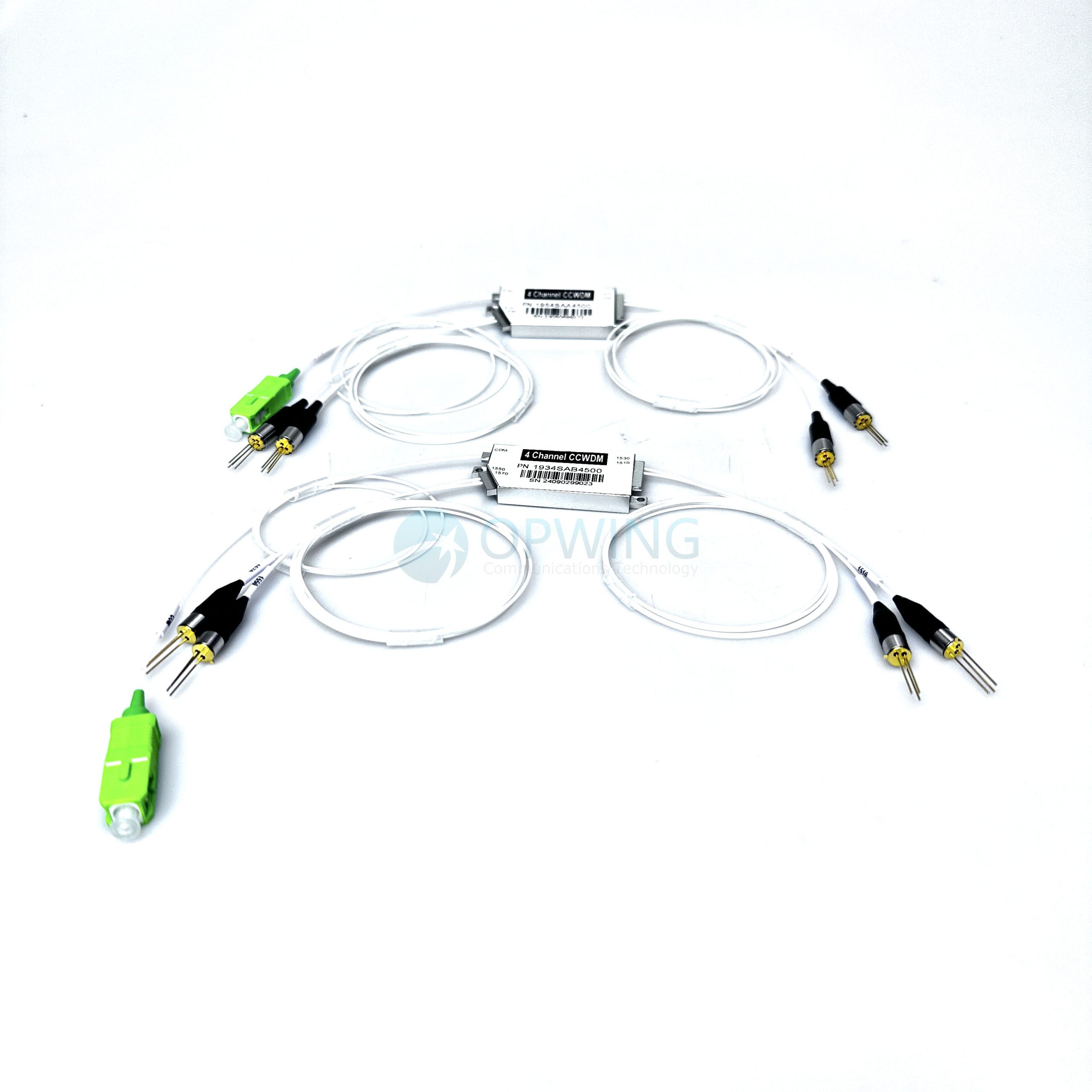

1×4 Channels CCWDM 1510/1530/1550/1570nm Transmit Moudle YYCM-3-4-SA
1×4 Channels CCWDM 1510/1530/1550/1570nm Receiver Moudle YYCD-3-4-SA
YYCD-3-4-SA（PD）YYCM-3-4-SA(LD)Pin Assignments
YYCM-3-4-SA(LD)Ω支架装配示意图（仅供装配示意，引脚相对位置可根据实际需要装配）
YYCD-3-4-SA（PD）
