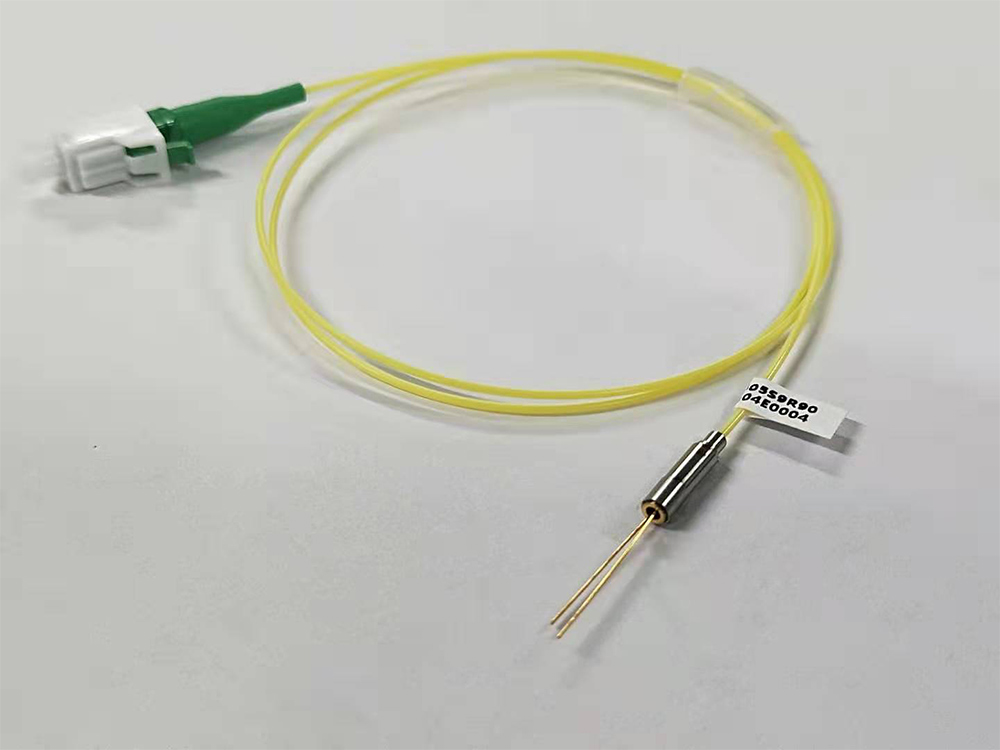

Features
- Low Voltage Operation
- Low Capacitance and High Speed
- Low Dark Current
- Excellent Stability
Applications
CATV transmission optical receiver
RF transmission optical receiver
Other Analog receiver/ Power detector
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40~+85 | ℃ |
| Operating Temperature | Top | -40~+85 | ℃ |
| Max Input Power | Pmax | +10 | dBm |
| Forward Current | Iop | 10 | mA |
| PD Reverse Voltage | VR(PD) | 20 | V |
| Soldering Temp | - | 260 | ℃ |
| Soldering Time | - | 10 | S |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Wavelength Range | λ | 1100 | - | 1650 | nm | - |
| Active Diameter | Ad | - | 80 | - | um | - |
| Dark Current | Id | - | 0.03 | 0.16 | nA | -5V |
| Responsivity | R | 0.80 | 0.85 | - | A/W | λ=1310 nm |
| 0.85 | 0.90 | - | λ=1550 nm | |||
| Bandwidth | Bw | - | 2 | - | GHz | - |
| Frequency Response | Fr | - | ±0.5 | - | dB | - |
| Capacitance | Ct | - | 0.65 | 0.80 | Pf | f =1MHz |
PIN Definition
Drawing
