Features
- Low dark current
- High linearity
- High reliability
- Compliant with RoHS standard
Applications
- Apply to various digital and analog fiber-optic transmission systems
Absolute Maximum ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Saturation power |
Ps |
— |
2 |
mW |
|
Forward current |
If |
— |
2 |
mA |
|
Reverse voltage |
Vr |
— |
20 |
V |
|
Operating temperature |
Top |
－40 |
+85 |
℃ |
|
Storage temperature |
Tstg |
－40 |
+85 |
℃ |
|
Solder Temperature |
Ts |
— |
260 |
℃ |
|
Soldering time |
— |
— |
10 |
s |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
|
Case Operating Temperature Range |
Tc |
－40 |
+25 |
+85 |
℃ |
|
Operating voltage |
Vcc |
— |
-5 |
— |
V |
Optical and Electrical Characteristics(Tc=25℃)
|
Parameter |
Symbol |
Test condition |
Min. |
Type |
Max. |
Unit |
|
|
Pass Channel Wavelength |
λ0 |
1540 |
1550 |
1560 |
nm |
||
|
Reflect Channel Wavelength |
λ1 |
1260 |
1310 |
1360 |
nm |
||
| Reflect Channel Wavelength |
λ2 |
1480 |
1490 |
1500 |
nm |
||
|
Responsivity |
R |
Vr=5V λ=1550nm |
0.88 |
0.95 |
— |
A/W |
|
|
Return Loss |
RL |
λ=1550nm |
35 |
40 |
— |
dB |
|
|
Isolation |
透射Pass Channel |
Iso |
λ=1310nm λ=1490nm |
30 |
40 |
— |
dB |
| Isolation |
反射Reflect Channel |
λ=1550nm |
20 |
22 |
— |
dB |
|
|
PDL |
反射Reflect Channel |
λ=1310nm λ=1490nm |
— |
— |
0.05 |
dB |
|
| PDL |
透射 Pass Channel |
λ=1550nm |
— |
— |
0.05 |
dB |
|
|
插入损耗（公共端-反射端） Insert loss（COM- Reflect） |
IL |
λ=1310/1490nm 不含外部法兰损耗 |
— |
— |
0.7 |
dB |
|
|
ESD |
— |
300 |
— |
— |
V |
||
二阶三阶失真测试说明：
1310/1550nm双音测试，OMI=40%，接收总功率P=0dBm.
注1：fm=548.5MHz，f1=109.25MHz，f2=439.25MHz；
注2：fm=529.25MHz，f1=349.25MHz，f2=439.25MHz；

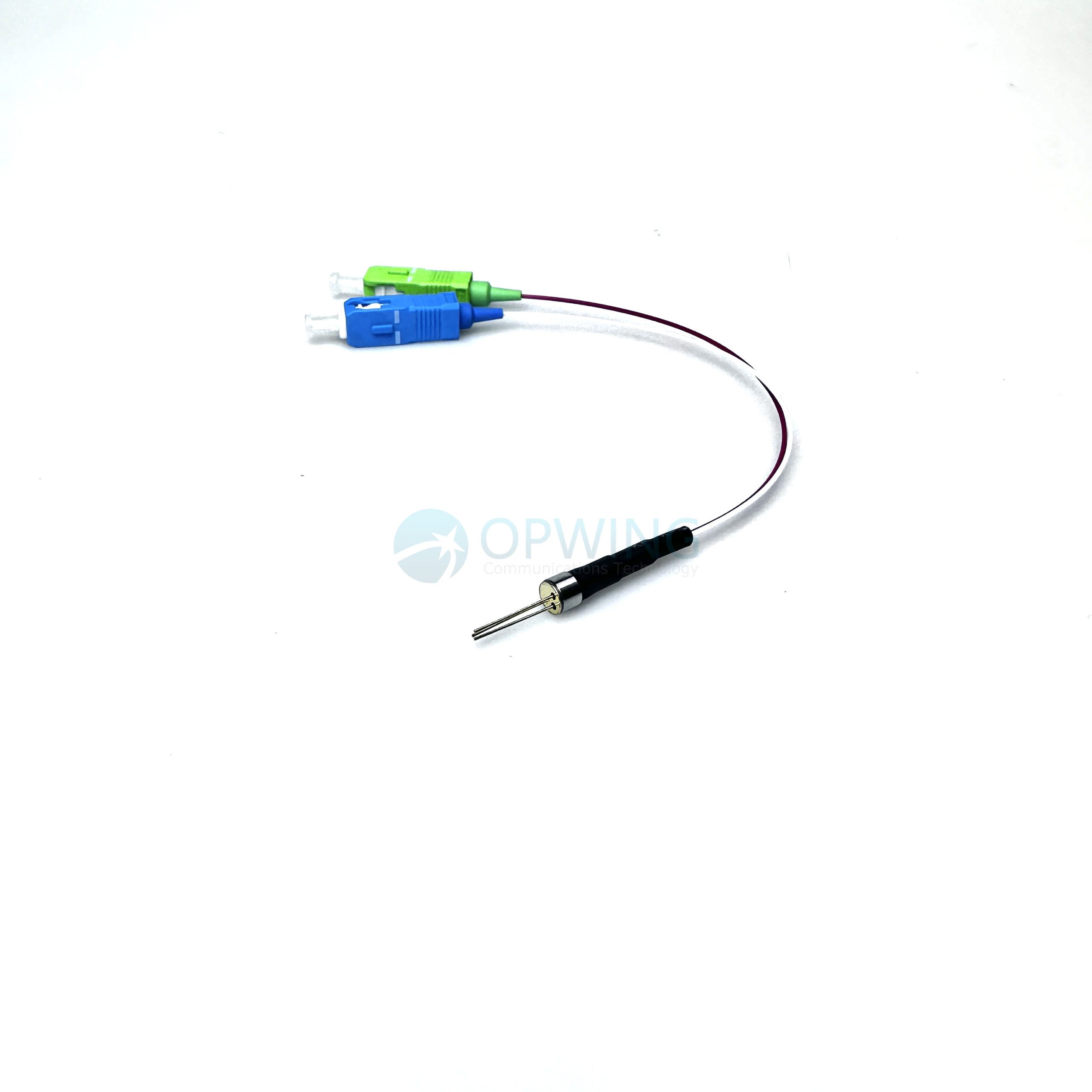

Package Dimensions and Pin Description
Unit：mm Connector：SC/APC SCUPC
Fiber Type：SM 、9/125um 、900um
