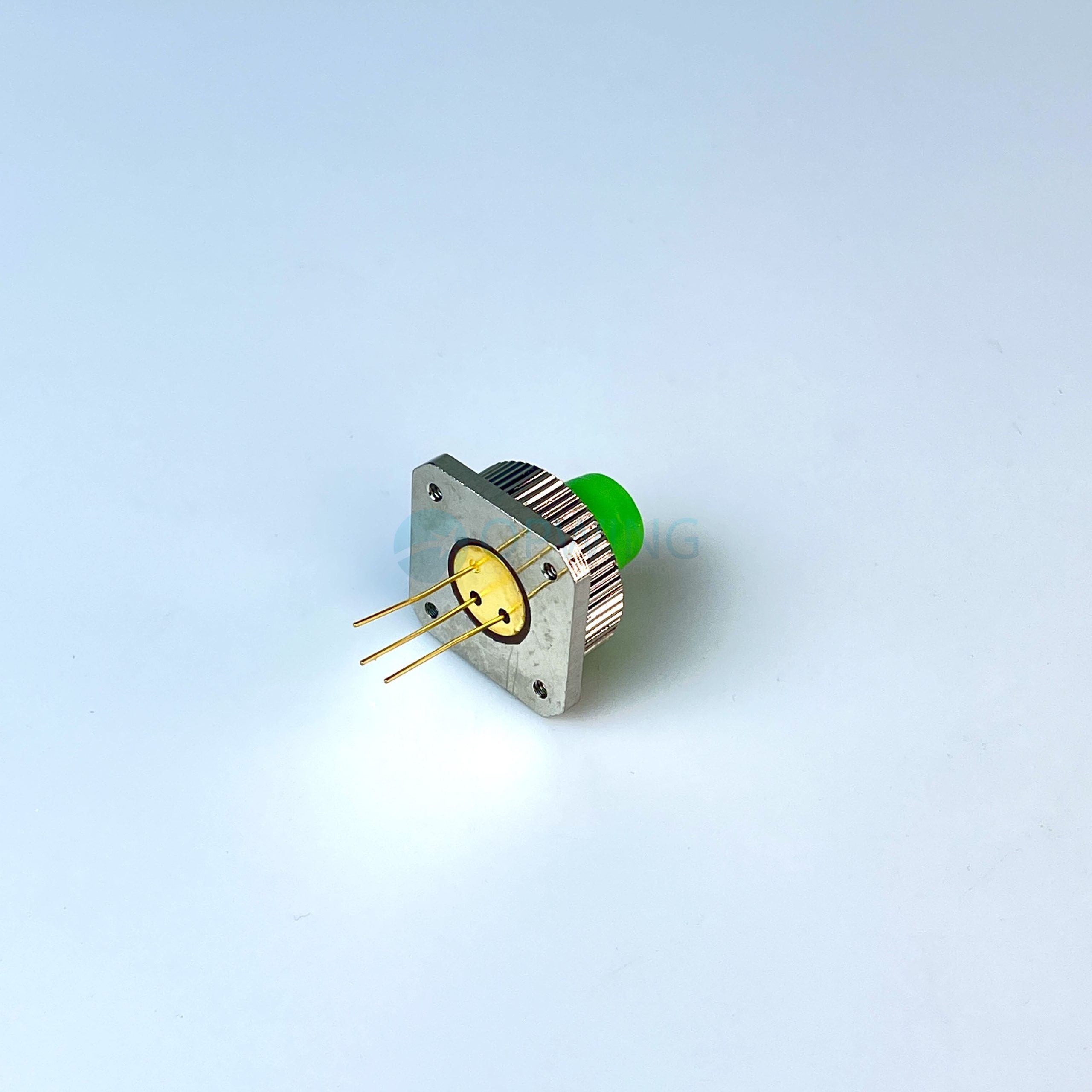

Features
- Low dark current
- High responsivity
- High reliability
- High Accuracy
Applications
- Test Equipment
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
|
Storage Temperature |
Tst |
-40 |
+100 |
℃ |
|
Operating Temperature |
Top |
-40 |
+85 |
℃ |
|
Forward Current |
If |
--- |
10 |
mA |
|
Reverse Bias |
Vr |
--- |
30 |
V |
Optical and Electrical Characteristics(Tc=25℃)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Wavelength Range |
λ |
800 |
— |
1700 |
nm |
|
|
Active Area |
Φ |
— |
2000 |
— |
um |
|
|
Power Range |
P |
-60 |
— |
+10 |
dBm |
Vr=5V, RL=50Ω |
|
Responsivity |
R |
— |
0.85 |
— |
A/W |
Vr=5V, λ=1310nm |
|
— |
0.90 |
— |
Vr=5V, λ=1550nm |
|||
|
Accuracy |
Acc |
— |
— |
±0.25 |
dB |
@25℃ |
|
Dark current |
Id |
— |
3.0 |
8.0 |
nA |
φ2000um，Vr=5V |
|
Response Time |
Tr |
— |
— |
20 |
ns |
φ2000um，Vr=5V，10%~90% |
|
Capacitance |
C |
— |
160 |
230 |
pF |
Vr=5V, F=1MHz |
|
Saturated Optical Power |
Ps |
+10 |
— |
— |
dBm |
φ2000um，Vr=0V |
|
ESD |
300 |
— |
— |
V |
Dimensions and Pin Assignment
