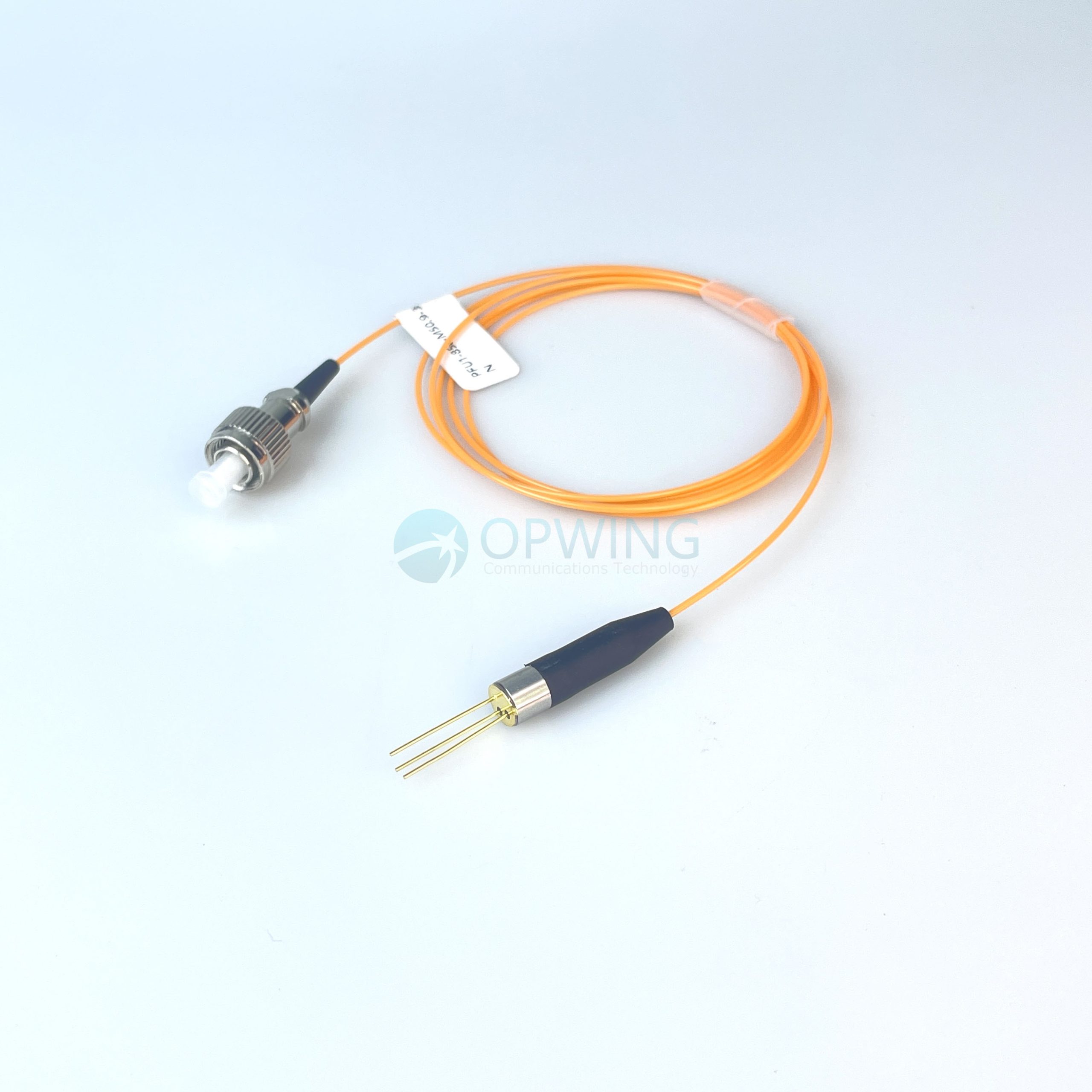

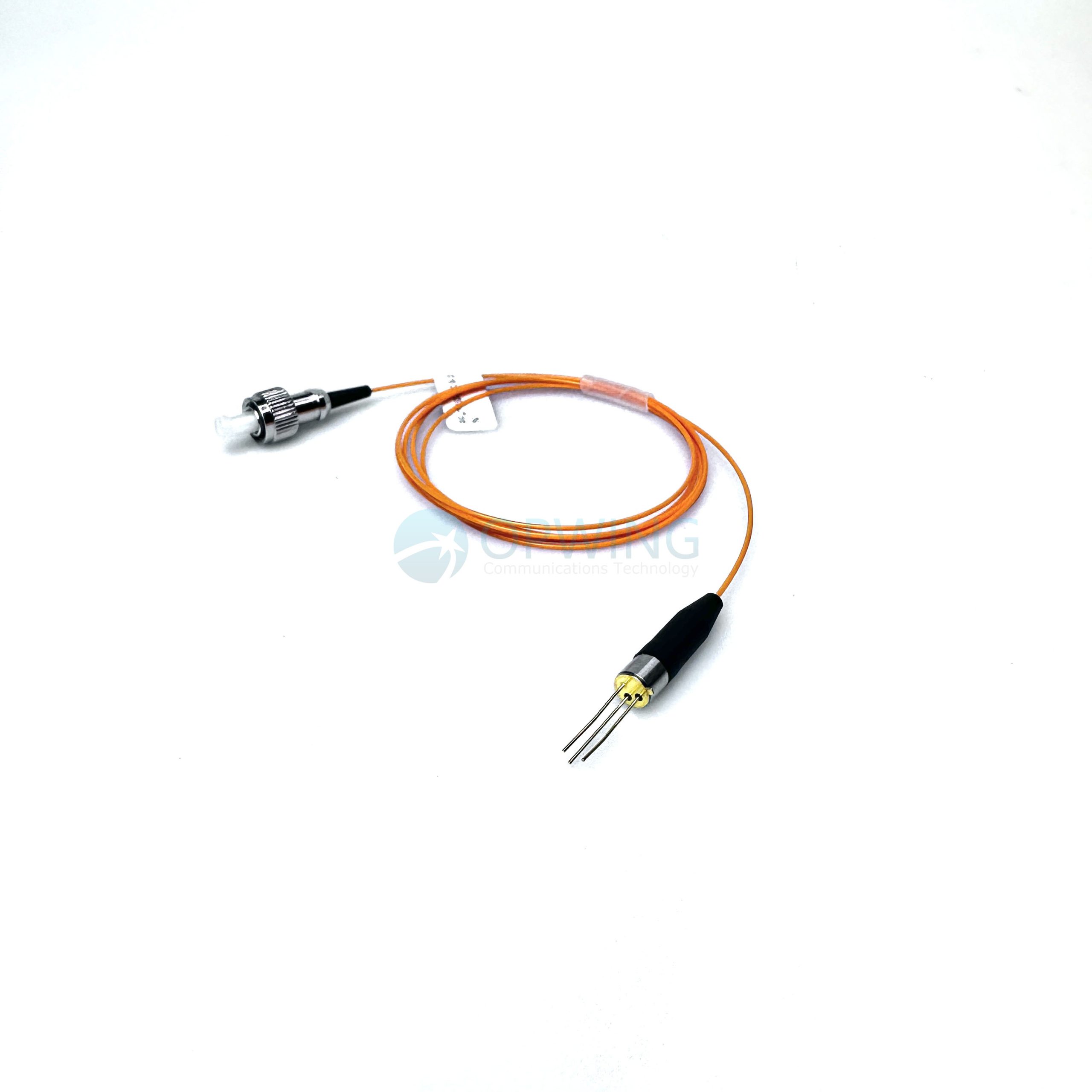

Features
- Highly reliable / COD free
- Higher power
- Monitor PD included
Applications
- 850nm Laser modules
- Industrial laser markers / measuring instruments
- Medical applications
Absolute maximum rating(Tc=25℃)
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Forward current (Laser diode) |
IF |
-- |
12 |
mA |
|
Operating temperature |
Top |
0 |
+85 |
℃ |
|
Storage temperature |
Tstg |
-40 |
+100 |
℃ |
Optical and Electrical Characteristics(Tc=25℃)
|
Parameter |
Symbol |
Test condition |
Min. |
Type |
Max. |
Unit |
|
Threshold Current |
Ith |
CW, T=25 °C |
--- |
--- |
1.5 |
mA |
|
Optical Output Power |
Pf |
CW, IFL=Ith+20mA |
2 |
3 |
--- |
mW |
|
Operating Current |
Iop |
T=25 °C |
--- |
--- |
10 |
mA |
|
Slope Efficiency |
η |
CW, IFL=8mA |
0.15 |
0.2 |
--- |
mW/mA |
|
Operating Voltage |
vop |
CW, IFL=Iop |
--- |
--- |
2.0 |
V |
|
Center Wavelength |
λc |
CW, IFL=7mA |
840 |
850 |
860 |
nm |
|
Slope Efficiency Temp-coeff |
∆η/∆T |
0~+85℃,7mA |
--- |
-0.5 |
--- |
%/℃ |
|
Rise/Fall time |
Tr/Tf |
20%~80% |
--- |
110 |
--- |
ps |
|
Ith Temperature Variation |
∆Ith |
0~+85℃ |
--- |
1.5 |
--- |
mA |
|
Differential Resistance |
RS |
7mA |
20 |
35 |
55 |
Ω |
|
Backside PD Voltage |
VPD |
--- |
4 |
--- |
V |
|
|
Backside PD Current |
Im |
7mA |
70 |
100 |
300 |
uA |
Pin Assignment and Package dimensions
Unit：mm
