Features
- High-reliability DFB laser diode
- Integrated Optical Isolator（single stage FSI）
- Low threshold Current,Low dark current, High slope efficiency,High linearity
- Compliant with RoHS standard
Application
- Apply to various digital and analog fiber-optic transmission systems,CATV
Optical and Electrical Characteristics(Tc=25℃)
13 Channels DWDM CH22-34(1550.12-1559.79nm) Transmit Module YYDM-2-13-SA
|
Num |
Parameter |
Unit |
Min |
Typ |
Max |
|
|---|---|---|---|---|---|---|
|
YYDM-2-13-SA |
||||||
|
1 |
Threshold Current |
mA |
— |
6 15 |
15 30 |
CW, T=25 °C CW, T=85 °C |
|
2 |
Operating Current |
mA |
— |
Ith+20mA |
— |
CW, T=25 °C |
|
3 |
Operating Voltage |
V |
— |
1.1 |
1.6 |
CW, Ith+20mA |
|
4 |
Monitor Current(I=Ith+20mA) |
uA |
100 |
— |
500 |
CW, Ith+20mA @25 °C |
|
5 |
Monitor Dark Current |
nA |
— |
— |
200 |
Vr=5V |
|
6 |
-3dB Bandwidth |
GHz |
— |
4.5 |
— |
Po=2.0mW |
|
7 |
Optical Output Power |
mW |
1.2 |
— |
— |
CW, Ith+20mA |
|
8 |
Slope Efficiency |
mW/mA |
0.07 |
— |
— |
CW, Ith+20mA |
|
9 |
Center Peak Wavelength(T=25℃) |
nm |
— |
1550.12 1550.92 1551.72 1552.52 1553.33 1554.13 1554.94 1555.75 1556.55 1557.36 1558.17 1558.98 1559.79 |
— |
CW, Ith+20mA ITU Grid |
|
10 |
Spectral Width |
nm |
— |
0.1 |
1.0 |
CW, Ith+20mA |
|
11 |
SMSR |
dB |
35 |
42 |
— |
Ith+20mA，25°C |
|
12 |
Optical Isolation |
dB |
30 |
— |
— |
|
|
13 |
Wavelength temperature coefficient |
nm/°C |
— |
0.09 |
0.12 |
|
|
14 |
Rise and fall time |
ps |
— |
— |
100 |
Ith+20mA，10%~90% |
|
15 |
DWDM Box Package Dimensions |
mm |
120*80*10 |
|||
13 Channels DWDM CH22-34(1550.12-1559.79nm)Receiver Module YYDD-2-13-SA
|
Num |
Parameter |
Unit |
Min |
Typ |
Max |
||
|---|---|---|---|---|---|---|---|
|
YYDD-2-13-SA |
|||||||
|
1 |
Freguency Bandwidth (-3dB) |
GHz |
3.0 |
— |
— |
||
|
2 |
Capacitance (Vr=5V) |
pF |
— |
0.6 |
1 |
||
|
3 |
Dark Current (Vr=5V) |
nA |
— |
0.2 |
1 |
||
|
4 |
Responsivity (Vr=5V) (注) |
mA/mW |
0.45 |
— |
— |
CH22-34(1550.12~1559.79nm) |
|
|
5 |
Optical Return Loss |
dB |
40 |
50 |
— |
||
|
6 |
2nd Order Inter-Modulation |
dBc |
— |
≤-75 |
— |
||
|
7 |
3rd Order Inter-Modulation |
dBc |
— |
≤-80 |
— |
||
|
8 |
Detection Wavelength Range |
nm |
— |
1550.12 1550.92 1551.72 1552.52 1553.33 1554.13 1554.94 1555.75 1556.55 1557.36 1558.17 1558.98 1559.79 |
— |
ITU Grid (DWDM CH22~34) |
|
|
9 |
DWDM Box Package Dimensions |
mm |
120*80*10 |
||||
注：响应度=PIN管输出电流÷COM端SC/APC输入功率；此处包含了DWDM通道插损(3dB左右)的影响，普通单PIN管响应度为0.9mA/mW左右。
Package Dimensions and Pin Description
Connector：SC/APC
Fiber Type：SM 、9/125um 、900um

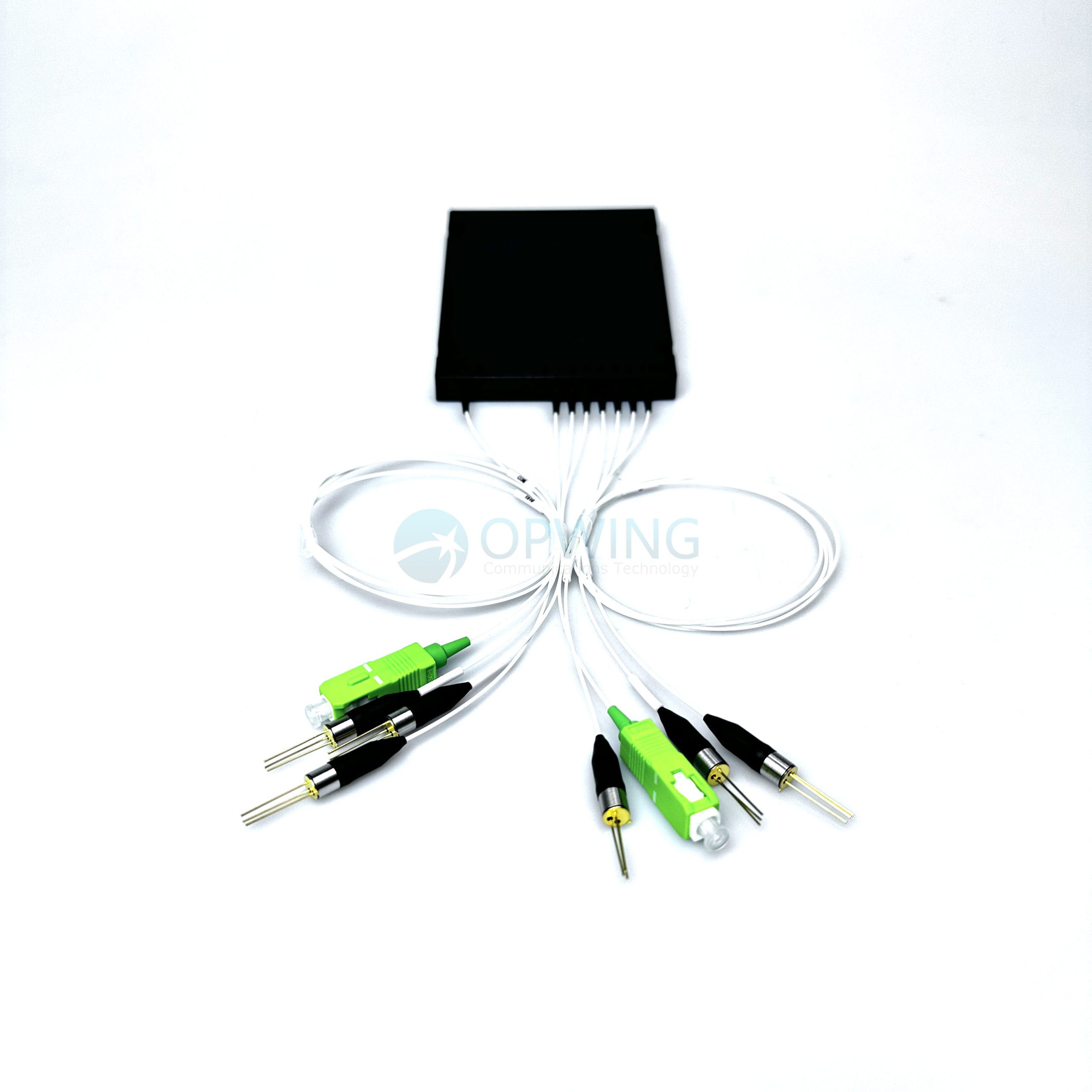

13 Channels DWDM CH22-34(1550.12-1559.79nm)Transmit Module YYDM-2-13-SA
13 Channel DWDM CH22-34(1550.12-1559.79nm)Receiver Module YYDD-2-13-SA
OPDD-2-13-SAOPDM-2-13-SAPin Assignments:
