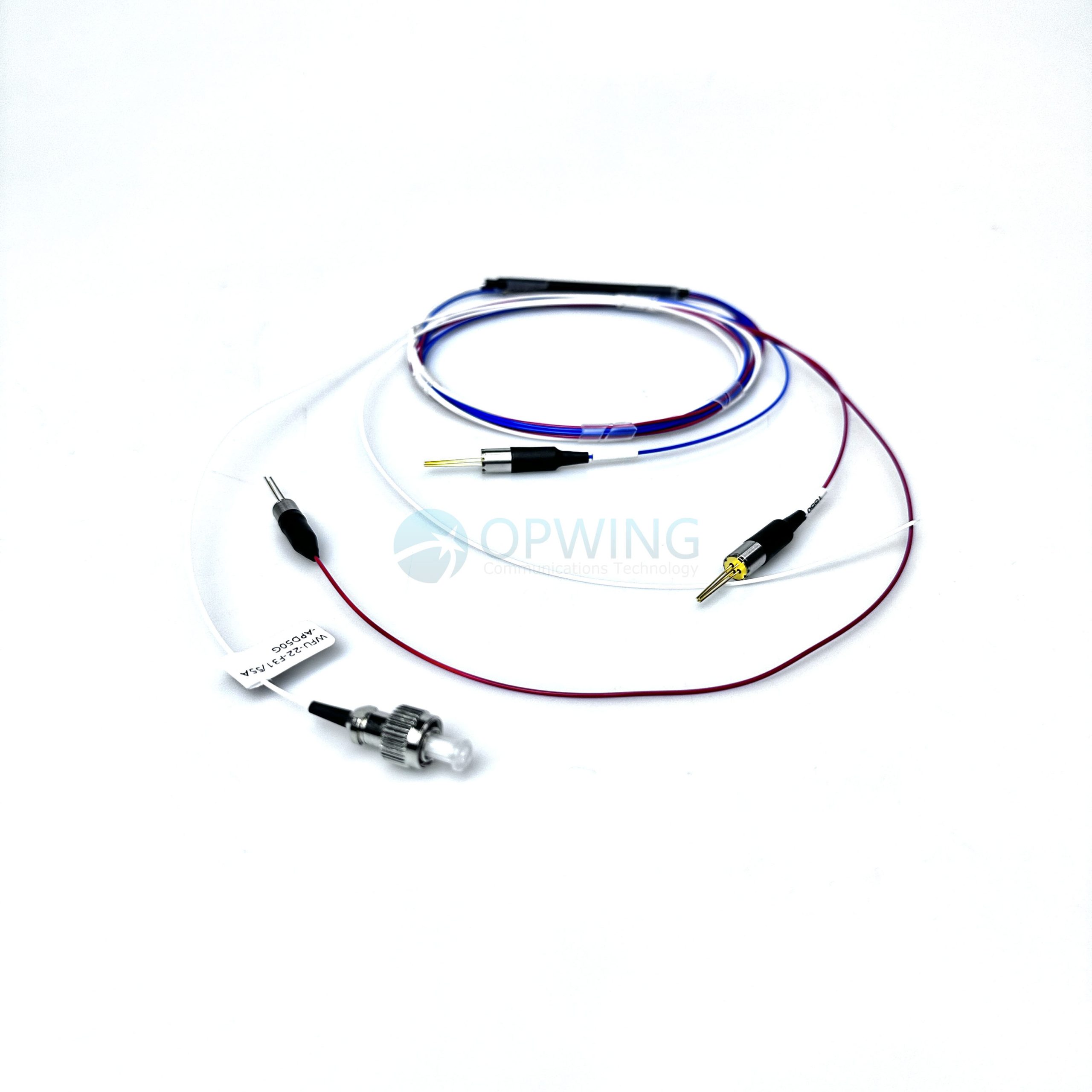

Optical and Electrical Characteristics(Tc=25℃)
(Note: The insertion of coupler is 3.1~3.5dB, so the output power reduced about 50%.)
|
Num |
Parameter |
Unit |
Min |
Typ |
Max |
Note |
|
|---|---|---|---|---|---|---|---|
|
Tx1：1310nm |
1310nm LD to COM1 |
||||||
|
1 |
Threshold Current |
mA |
— |
8 |
12 |
CW, T=25 °C |
|
|
2 |
Operating Current |
mA |
— |
30 |
— |
CW, T=25 °C |
|
|
3 |
Operating Voltage |
V |
— |
1.1 |
1.6 |
CW, If=30mA |
|
|
4 |
Optical Output Power |
mW |
2.0 |
— |
— |
CW, If=30mA |
|
|
5 |
Slope Efficiency |
mW/mA |
0.11 |
— |
— |
CW, If=30mA |
|
|
6 |
Peak Wavelength(T=25℃) |
nm |
1290 |
1310 |
1330 |
CW, If=30mA |
|
|
7 |
Spectral Width RMS |
nm |
— |
1.0 |
3.0 |
CW, If=30mA |
|
|
Tx2：1550nm |
1550nm LD to COM1 |
||||||
|
1 |
Threshold Current |
mA |
— |
9 |
12 |
CW, T=25 °C |
|
|
2 |
Operating Current |
mA |
— |
35 |
— |
CW, T=25 °C |
|
|
3 |
Operating Voltage |
V |
— |
1.1 |
1.6 |
CW, If=35mA |
|
|
4 |
Optical Output Power |
mW |
1.7 |
— |
— |
CW, If=35mA |
|
|
5 |
Slope Efficiency |
mW/mA |
0.09 |
— |
— |
CW, If=35mA |
|
|
6 |
Peak Wavelength(T=25℃) |
nm |
1530 |
1550 |
1570 |
CW, If=35mA |
|
|
7 |
Spectral Width RMS |
nm |
— |
1.0 |
3.0 |
CW, If=35mA |
|
|
Rx：APD |
1550nm APD to COM1 |
||||||
|
1 |
Optical Wavelength Range |
nm |
1100 |
— |
1680 |
||
|
2 |
Response Current 1 |
uA |
0.8 |
— |
— |
λ=1550nm， φe=2uW，M=1 |
|
|
3 |
Response Current 2 |
uA |
10 |
— |
— |
λ=1550nm， φe=2uW，Vbr-3V |
|
|
4 |
Multiplication factor（M） |
/ |
20 |
— |
— |
λ=1550nm， φe=2uW，Vbr-1.5V |
|
|
5 |
Return loss |
dB |
40 |
— |
— |
λ=1550nm |
|
|
6 |
Dark Current |
nA |
— |
— |
50 |
φe=0 uW，Vbr-3V |
|
|
7 |
Capacitance |
pF |
— |
0.15 |
0.20 |
Vr=Vbr -3V，F=1MHz |
|
|
8 |
Breakdown Reverse Voltage |
V |
37 |
— |
50 |
IR=10uA，φe =0 |
|
|
9 |
ESD |
V |
200 |
— |
— |
/ |
|
Package Dimensions and Pin Description
Fiber type：SM 、9/125um 、900um
1310/1550nm FP LD: APD:
Pin Assignment：
1310&1550nm APD
